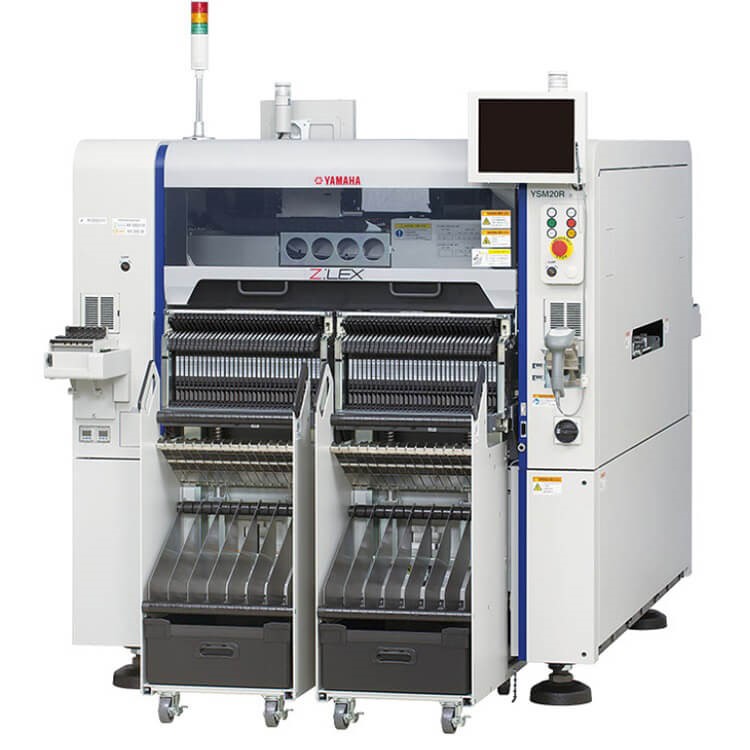

Yamaha YSM20WR Pick and Place Machine

Speed:90000CPH
PCB Size : L810 x W490mm
Feeder input:140 types
Weight: 2,050kg
Product description: Yamaha YSM20WR Pick and Place Machine, Speed:90000CPH, PCB Size : L810 x W490mm, Feeder input:140 types, Weight: 2,050kg

YRM CHIP MOUNTER

1. Core meaning: Yamaha SMT Module Mounter Series

"YRM" is the model code for Yamaha's modular mounter series in the surface mount technology (SMT) field. This series emphasizes high speed, high precision, and versatility, and is mainly used for circuit board (PCB) assembly in the electronics manufacturing industry.

2. Main models and features

Currently, the Yamaha YRM series has the following two representative models:

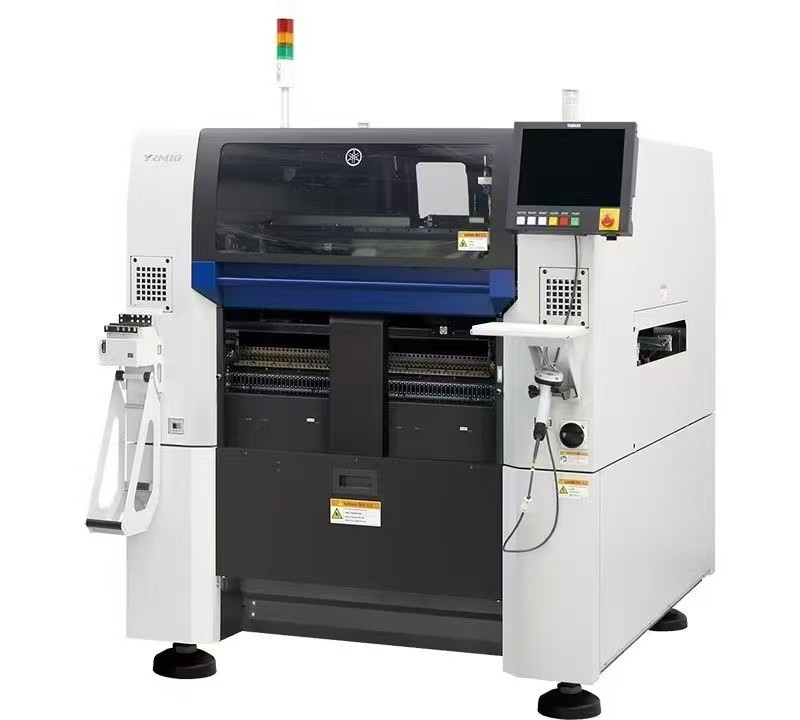

YRM10: Compact High-Speed Module Mounter

Positioning: As the successor to the entry-level model YSM10, it focuses on cost-effectiveness and space savings.

Performance: It adopts a single-rod single-head design, with a theoretical mounting speed of up to 52,000 CPH (components per hour), capable of mounting a wide range of components from tiny 0201 chips to medium-sized irregular components.

Features: It can handle various components without changing the suction head, has a side-view camera and coplanarity detection function, aiming to achieve "zero defective products" production.

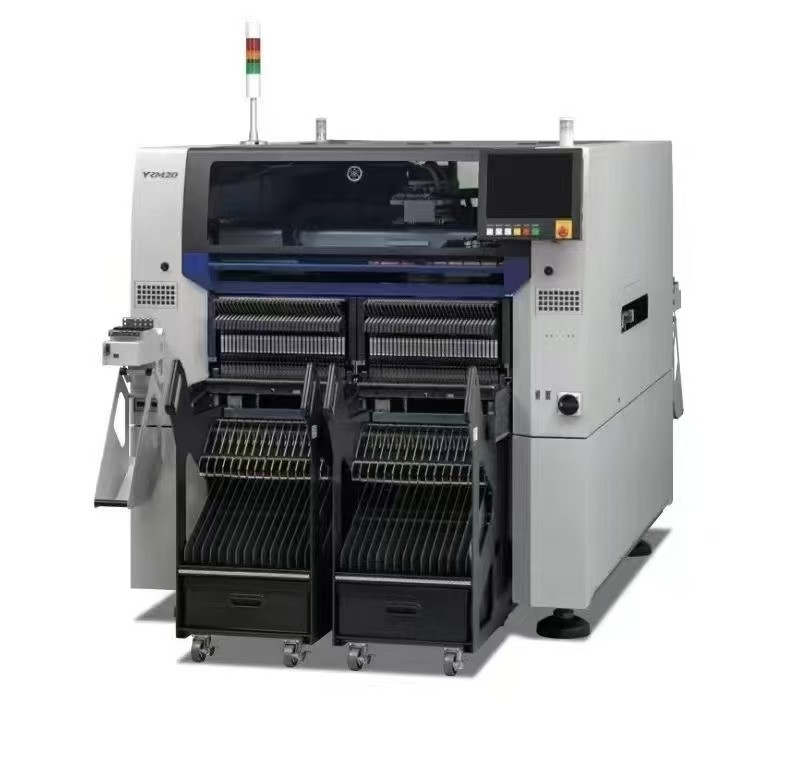

YRM20: High-End High-Efficiency Module Mounter

Positioning: The flagship model, suitable for high-mix, high-volume production environments.

Performance: It has a higher mounting speed (up to 98,000 CPH or even 115,000 CPH), with a precision of ±25 μm, supports dual-track (Dual Lane) production mode, significantly improving the production efficiency per unit area.

Yamaha YSM20WR Pick and Place Machine

Features of Yamaha SMT Placement

High-efficiency modular Yamaha SMT placement, Yamaha chip mounter YSM20R, applicable components 0201 to W55 x L100mm, Height 15mm or less, placement speed 95000 CPH.

1. World’s fastest mounting speed in its class; 5% faster than the YSM20.
Featuring a new wide-scan camera with improved component adaptability.
2. Optional features improving line operating rate without stopping the machine
a. Newly-developed Auto Loading Feeder (ALF) that revolutionizes feeding tape components by eliminating reliance on user skill
b. sATS30NS Auto Tray Sequencer (ATS) for nonstop tray replacement
c. Nonstop feeder carriage exchange system

Specification of Yamaha SMT Placement

Model	YSM20R TypePV	YSM20R TypeSV	YSM20WR
Applicable PCB	Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50		Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head Note 3: 0201 to W55 x L100mm, Height15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less	High-Speed Multi (HM) Head: 03015 to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less	High-Speed Multi (HM) Head Note 3: 0201 to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH	X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 90,000CPH	X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 1,857 x H1,445mm (Main unit only)		L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,050kg (Main unit only)		Approx. 2,500kg (Main unit only)
